Project Description
Quiet 1hp Induction motor;
Tough powder coated paint finish;
Quick action metal bag clamps;

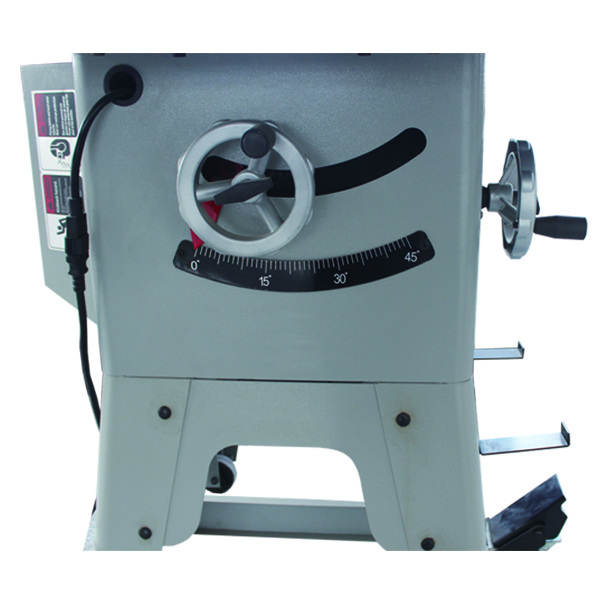

1.Cabinet mounted trunion system: the precision-machined cast iron trunions are mounted to the ensure perfect blade alignment,increased stability and to eliminate vibration stability and to eliminate vibration;
2.New riving knife:quick release riving knife with 2 tightinning knobs gives users easiness in setup/remove the blade duard and solitters,Easy to adjust high/low profile foe the table top;
3.Magnetic table insert at slot’s end: provide users in removing easily from the table top in seconds;
4.Seamless table top& push stick;

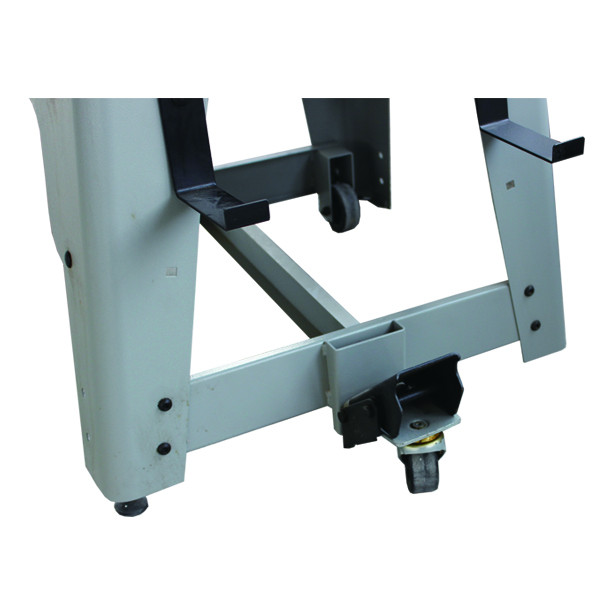

5.Built in mobile base;
6.1.5HP TEFC dual capacitor motor
| Model | W1-TSC10A |
| Specifications | |
| Motor | 1-1/2HP TEFC,120V/240V,13/6.5A |
| Switch | Paddle type |
| Speed | 3450rpm |
| Blade size | 10″×5/8″ |
| Max cutting height | 3-3/8″(90°)/2-1/4″(45°) |
| Rip right of blade | 30max |
| Rip left of blade | 20″ |
| Table in front of blade | 12-1/2″ |
| Dado capacity | 13/16″ |
| Table size | 27″×40″ |
| Table material | Cast iron |
| Dimentsions | 80″L×27″W×34.5″H |
| Weight | 328lbs |
